Battery Cycler and Emulation Test SystemRZ-X2-100K-HG
RZ-X2-100K-HG is a scalable test system for Battery Cycling and Emulation, ranging from 100 kW to 2,000 kW in 100 kW increments.
Expansion is effortless with simple cable connections—up to 20 machines in parallel or 2 machines in series.
It combines precise voltage and current control, rapid current response, and seamless power flow for motoring and regeneration, enabling realistic vehicle-condition testing.
Standard features include CC, CV, CP, and pulse modes, plus built-in protections for overvoltage, overcurrent, and overheating.

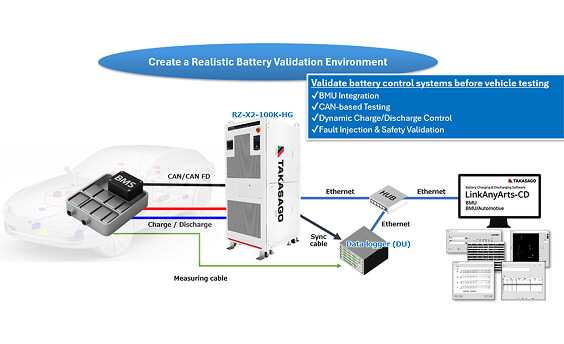

SCPI-based control from higher-level test automation platforms is supported, and optional LinkAnyArts software unlocks advanced capabilities for comprehensive battery testing.
Features
- Suitable for R&D and Quality assurance testing of battery modules /packs, inverters and traction motors.
- Variable voltage and current anywhere within in 100kW power envelope. (Rated Voltage: 750V, Rated Power: ±400kW).
- Supplies 2MW with Max. 20 units expansion.

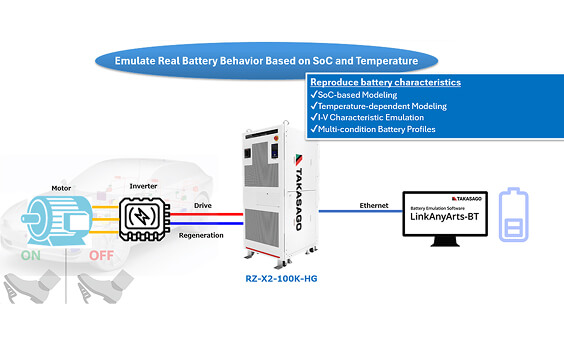

- Emulates actual battery usage scenarios while maintaining stability.
- High speed response≦ 10msec. and seamless switching between sourcing / loading.
- Reduce stress to DUT with no overshoot or undershoot of current.
- Safety features such as “Over-voltage, over-current, and over-temperature detection”, “Earth leakage breaker” and “E-stop button”
- Slew rate function and sequential operation.
- Large Touch Panel.
- High efficiency and low noise.
- Thermostatic chamber interlock.
- CAN / CAN FD interface options.
